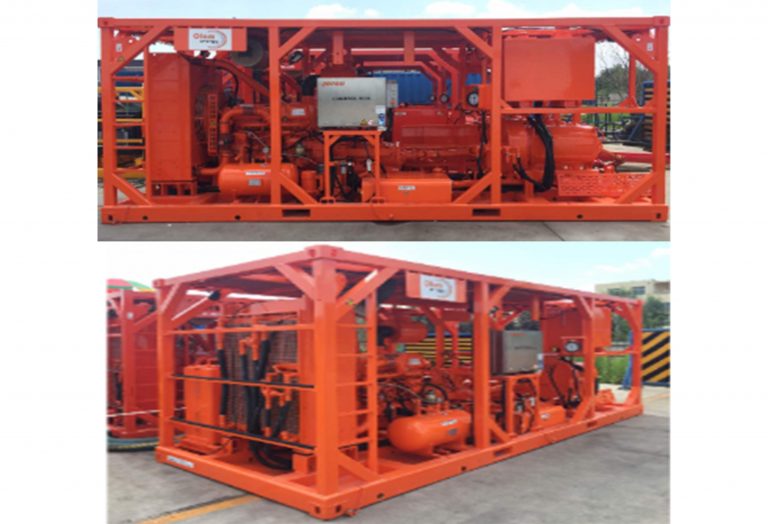

N2 Injection Unit

Features

  • Nitrogen pumping system 180K LN2 capable to pump and vaporize 180,000 SCFH* at 70 and pressures up to 10,000 PSI when supplied with liquid nitrogen from a suitable tank.
  • Designed and built for onshore and offshore operations.
  • Mounted Nitrogen and Vaporization pumping system.
  • Materials for the Unit Structure: Aluminum, Stainless Steel or Carbon Steel.
  • Designed to make easier the operation and maintenance.

Datasheet

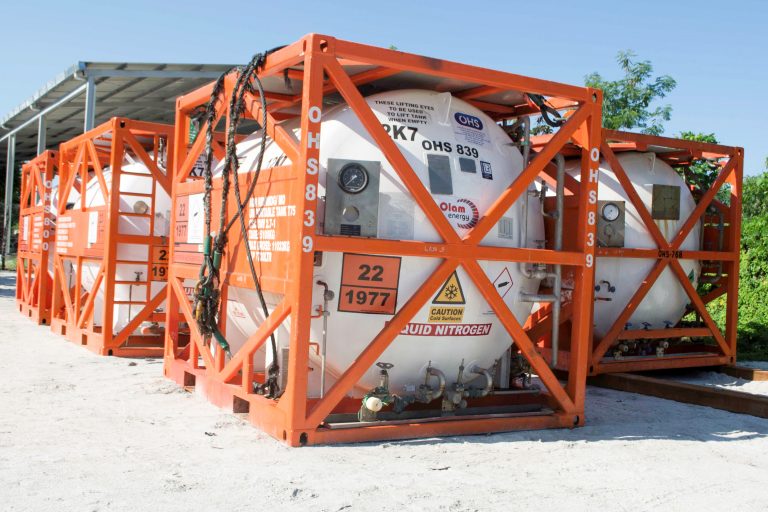

N2 Cryogenic Thermos

Features

  • The thermos are vacuum insulated tanks to store and transport liquid gas by:
01

HIGHWAY

02

RAILWAY

03

SEA

  • The Products approved for transportation included: Liquid nitrogen, oxygen and argon.

Datasheet

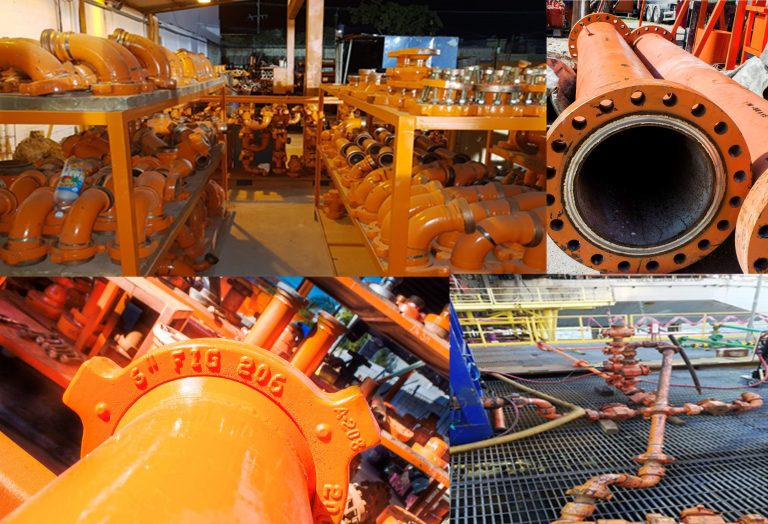

Pipelines (Surface Control Lines)

Features

The Surface Control Lines for work that are carried out in onshore and offshore wells require the pipelines interconnection to be able to flow or transfer fluids of different types into or out of the well.

  • Temporary Wells Moorings
  • SIPRAO(Olam Anticipated Production System).
  • Inductions with N2 Equipment
  • Stimulation with High Pressure Units

Datasheet

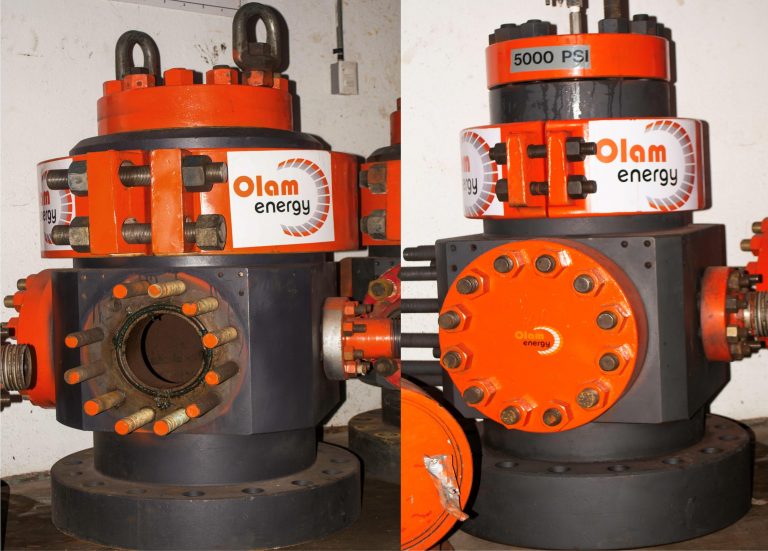

RCD'S

Features

  • Designed and built for onshore and offshore operations.
  • Mounted Nitrogen and Vaporization pumping system.
  • Materials for the Unit Structure: Aluminum, Stainless Steel or Carbon Steel.
  • Designed to maker easier the operation and maintenance.

Rotary Heads Equipment Capacity

01

(7) EYON XL ROTARY HEADS (5) EYON HEADS

02

(3) EYON XL OPERABLE ROTARY HEADS

03

(3) EYON OPERABLE ROTARY HEAD

Datasheet

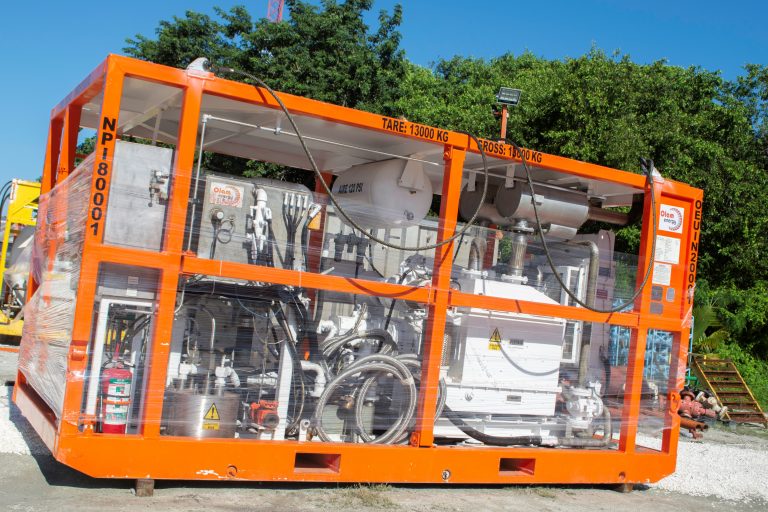

MPD SEMCCO System

Features

  • SEMCCO©️ – (Olam©️ throttling, measurement, control and conduction system of fluids and gases for oil wells).
  • System that allows the client to cover the need for measurement and derivation of N2 gas injection flow using a single injection equipment for two and three wells simultaneously.
  • The equipment available for this operation is an arrangement of valves and variable flow chokes that, together with the measurement skids, will help us carry out the correct derivation of the flow required for each well in question.
  • Designed equipment to measure the N2 flow by the differential pressure method using an orifice plate, supported by Software Energy v.2.0 for monitoring and graphing of parameters in real time.
  • Function tested according to DIN IEC 60068-2-6.
  • Storage / transport, tested according to IEC 60068-2-27, IEC 60068-2-29.

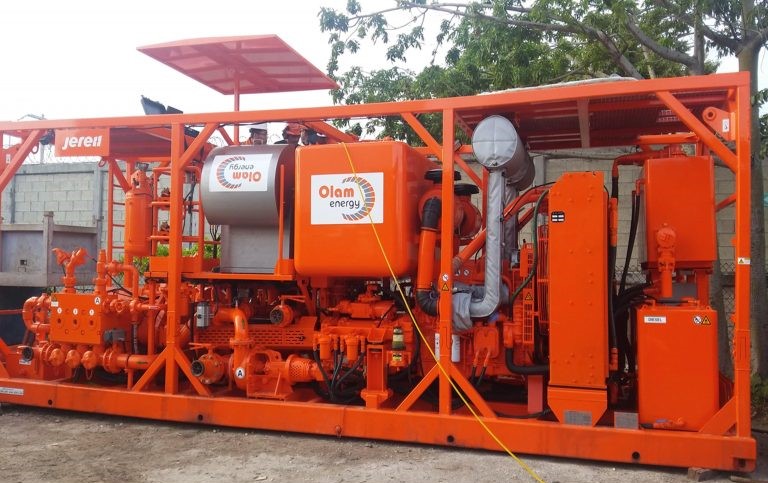

Single high-pressure units

Features

  • The design of the unit guarantees that the operators can monitor all the switches, instruments and the work conditions of all the systems in a convenient and clear way.
  • There are Lights designed near of the instrument box and the displacement tank for night operations.
  • The unit is equipped with 2 protection systems for guarantee the security of the equipment and the personal. One of them is the alvio safety valve and the over pressure.

Datasheet

Double high-pressure units

Features

  • The design of the unit guarantees that the operators can monitor all the switches, instruments and the work conditions of all the systems in a convenient and clear way.
  • There are Lights designed near of the instrument box and the displacement tank for night operations.
  • The unit is equipped with 2 protection systems for guarantee the security of the equipment and the personal. One of them is the alvio safety valve and the over pressure.

Datasheet

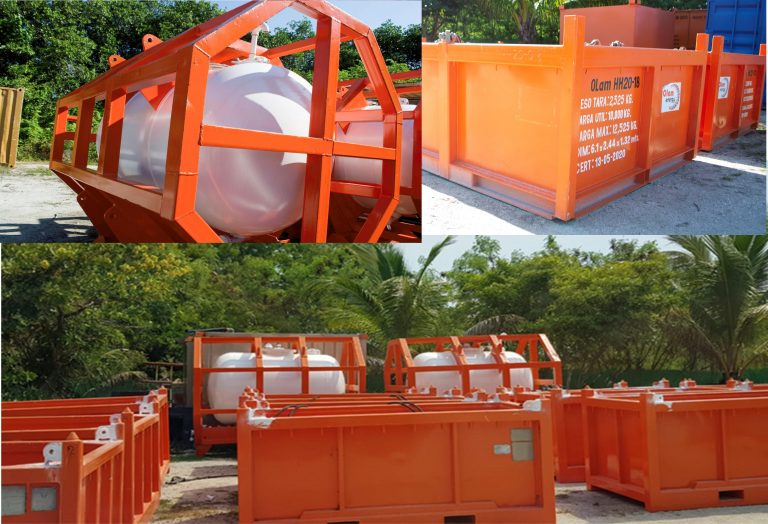

Baskets and diesel tanks

Features

  • -20ºC Design temperature
  • Wire rope sling
  • Baskets with payloads from 3,750 kg to 10,000 kg

Datasheet

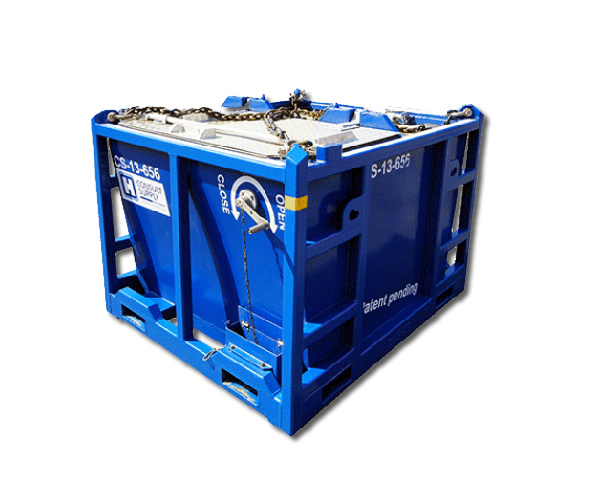

Cutting Box

Features

  • Provides safe and efficient containment of the drilling waste for the transport from drilling platforms / production platforms to treatment or disposal on land.
  • Designed, manufactured and totally certified in DNV 2.7-1 / EN12079 standards.
  • Sliding lid operated from ground level.
  • Flip Lid.
  • The sealed lid prevents spills during transport.
  • Forklift pockets to make easier maneuvers.
  • -20ºC Design temperature

Datasheet
